単位：㎜

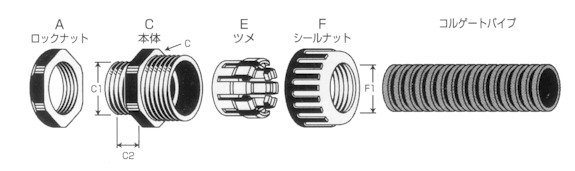

| 電線管呼び径（外形㎜） | 品番 | F1(㎜) | 取付部 ネジ |
取付穴径 | ネジ 外径 C1 |
ネジ 長 C2 |
対角 | 対辺 | 高さH | 包装単位 | ||||
| A | C | F | A | C | F | |||||||||
| φ5(7.8) | FGA13-08-woBD | 8.7 | G1/4 | 13.2-13.7 | 13.2 | 9.0 | 21.0 | 21.0 | 21.0 | 19.0 | 19.0 | 19.0 | 24.0 | 50 |
| φ7(10.2) | N-FGN13-10 | 10.4 | G1/4 | 13.2-13.7 | 13.2 | 9.0 | 21.0 | 21.0 | 19.0 | 19.0 | 19.0 | 19.0 | 26.0 | 50 |
| φ10(14.1) | N-FGN21-15 | 16.0 | G1/2 | 21.0-21.5 | 21 | 10.0 | 29.5 | 29.6 | 29.8 | 26.5 | 26.8 | 29.8 | 30.0 | 50 |
| φ13(17.5) | N-FGN21-18 | 18.3 | G1/2 | 21.0-21.5 | 21 | 10.0 | 29.5 | 29.6 | 29.8 | 26.5 | 26.8 | 29.8 | 31.0 | 50 |
| φ15(19.5) | N-FGN21-21 | 22.0 | G1/2 | 21.0-21.5 | 21 | 10.0 | 33.7 | 35.2 | 35.0 | 30.3 | 33.2 | 35.0 | 31.0 | 50 |
| φ19(23.8) | N-FGN26-26 | 26.5 | G3/4 | 27.0-27.5 | 26.4 | 15.0 | 36.5 | 40.3 | 40.0 | 33.0 | 36.4 | 40.0 | 31.0 | 50 |
| φ22(27.1) | N-FGN26-28 | 29.0 | G3/4 | 27.0-27.5 | 26.4 | 15.0 | 36.5 | 40.3 | 40.0 | 33.0 | 36.4 | 40.0 | 31.0 | 50 |
| φ25(30.2) | N-FGN33-34 | 35.0 | G1 | 33.5-34.5 | 33.2 | 15.0 | 46.5 | 47.0 | 47.0 | 43.5 | 43.5 | 47.0 | 30.0 | 10 |
| φ28(34.2) | N-FGN33-34 | 35.0 | G1 | 33.5-34.5 | 33.2 | 15.0 | 46.5 | 47.0 | 47.0 | 43.5 | 43.5 | 47.0 | 34.0 | 10 |
| φ32(38.0) | N-FGN42-42 | 43.3 | G1-1/4 | 42.0-43.0 | 41.9 | 20.0 | 58.0 | 57.0 | 57.0 | 55.0 | 53.0 | 57.0 | 36.0 | 10 |
材質：66ナイロン（UL94V-2）
